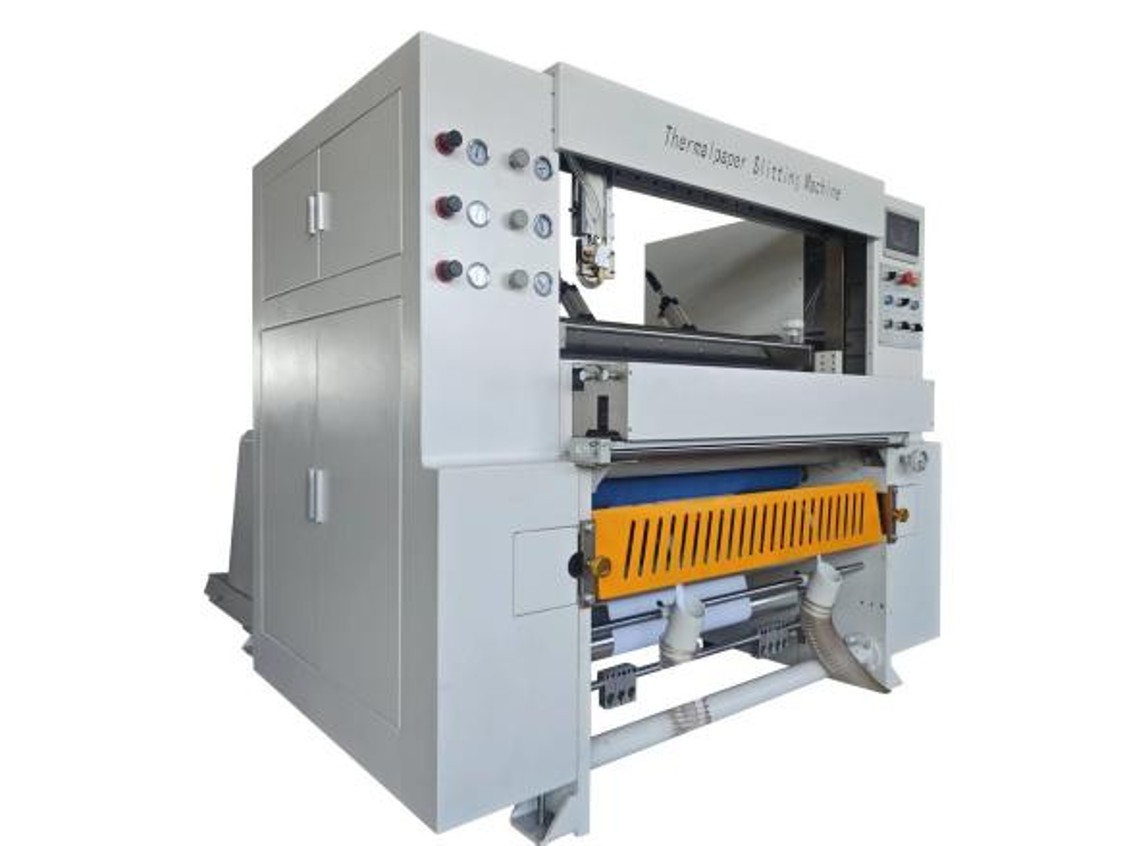

FEATURES:
this high speed fully automatic thermal paper roll slitting rewinding machine with model NHSJ9 00 is adopt the surface rewinding way,
automatic blowing and insert paper. Automatic cutting paper and gluing paper.

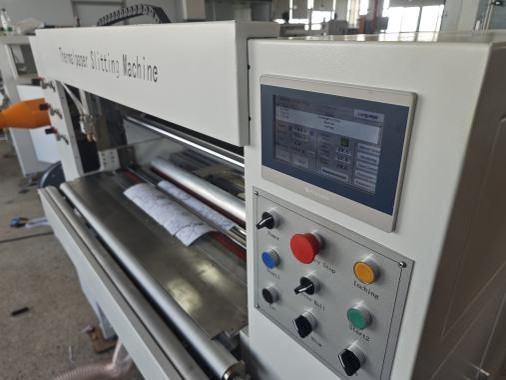

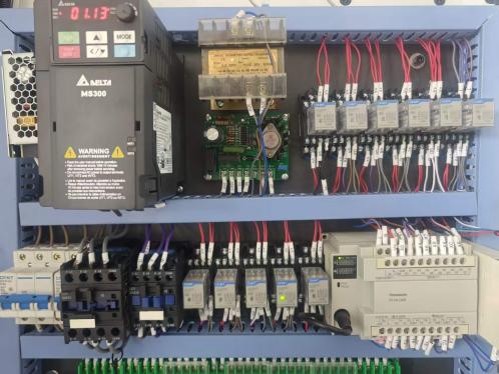

The electric part adopt the most advanced PLC controller. All of the program are set by the touch screen(PLC).

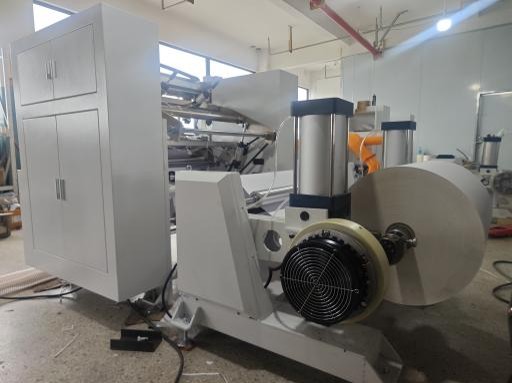

Unwinding is used to automatic loading system, the tension force is controlled by the Programmable Logic Controller.
It is the most advanced numerical control cash register slitting equipment in China.
.jpg)
.jpg)
.jpg)
TECHNICAL PARAMETERS:
Material: Thermal paper, cash register, ATM roll etc
The maximum width of the jumbo paper reel: 900mm
working speed: 194 m per minute
Slitting blade materials: SKD-11
Slitting accuracy: 0.03mm+/-
maximum unwinding diameter: 1200mm(if need 1400mm, we can special doing it)
maximum unwinding weight: 2 tons
unwinding shaft: locked 3 inch air expanding shaft
Unwinding tension force 100N/M
maximum rewinding diameter: 200mm
The main motor: 2.2 KW frequence inverter control
The fan motor: 550w single phase motor
Standard slitting width: 35mm 57 65 75 80....900
Machine material: steel board and cast iron
Working voltage: three phase four line, 380V, 50-60HZ
Working air pressure: 0.6Mpa
total power: 5.5 kw
total weight: about 1.6 tons
MACHINE FUNCTION( THE RED WORD IS OPTION)
Automatic paper insert system
Automatic warning line printed
Air loading paper system
Automatic taper tension control
Automatic separate paper by Banana roll
Magnetic powder brake with Active air cooling system
Automatic paper cutting
Automatic glue sprinkle
Automatic paper rotation and gluing
Automatic paper push out
Automatic paper push to packing machine
Automatic feeding core
