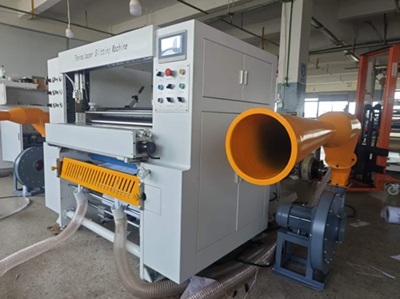

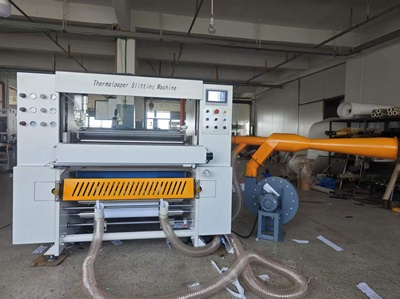

THERMAL PAPER ROLL SLITTING REWINDING MACHINE HSJ888

this thermal paper roll slitting rewinding machine with model HSJ888 is mainly used to slit rewind the

TEL: 0086-577-65123056 MOBILE/WHATAPP: 008613967712353 E-mail: cathylong7755@gmail.com skype: cathylong7755

Details

DESCRIPTION:

this thermal paper roll slitting rewinding machine with model HSJ888 is mainly used to slit rewind the FAX PAPER, CASH REGISTER,THERMAL PAPER ROLLS, COMPUTER BILL, MEDICAL RECORD PAPER,POS PRINTING PAPER,ATM REEL PAPER, film and self adhesive paper etc.

this machine assemble the normal AUTOMATIC CUTTING, AUTOMATIC GLUING FUNCTION, it also assemble one one big waste blowing device. through this device, the waste thermal paper roll edge will not be chaos.

FUNCTION:

This thermal paper roll slitting rewinding machine adopt the surface rewinding way, automatic blowing and insert paper. Auromatic cutting paper and gluing paper.The electric part adopt the most advanced PLC controller. All of the program are set by the touch screen(PLC). Unwinding is used to automatic loading system, the tension force is controlled by the Programmable Logic Controller. It is the most advanced numerical control cash register slitting equipment in China

TECHNICAL PARAMETERS

maximum width of jumbo paper rolls: 900mm

the width of small slitted thermal paper rolls: 20-900mm

working speed: 168m/min

slitting speed:5-168m/min

maximum unwinding speed: 1000mm

unwinding shaft: 3inch air expanding shaft

maximum rewinding diameter: 160mm

The main motor: 3.0 KW frequence inverter control

The fan motor: 0.55 kw single phase motor

The transimmission way: chain, gear and synchronization strap

Standard slitting width: 35mm 57 65 75 80 ....900

Machine material: steel board and cast iron

Working voltage: three phase four line, 380V, 50HZ

total power: 505kw

weight: 1500kgs

BASIC EQUIPMENT

Description	Brand
Automatic paper insert system
Automatic tension force system
Automatic warning line printed
Automatic glue sprinkle
Automatic paper cutting
Automatic paper rotation and gluing
Length setting
Automatic Corel Feeding system
PLC system	Panasonic	Japan
Inverter	Delta	Taiwan
Relay	Schneider	France
Touch Screen	Flexem	China
Bearing	NSK	Japan
Motor	Shanghai	China

FREE PARTS AND TOOL LIST

Description	Quantity
Instruction	1
Host	1
Wrench of dural purpose	1
Socket head wrench	1
Electric Testing pen	1
Clyburn spanner	1
Round nut wrench	1
Oil gun	1
Tension board	1
Screwdriver (slot type and cross type)	each one
Nylon gear	2
Rewinding Roll	6
Synchronous Belt M5-790 ,M5-950	each one
