PAPER SERPETINE STREAMERS ROLL SLITTING REWINDING MACHINE HJG888

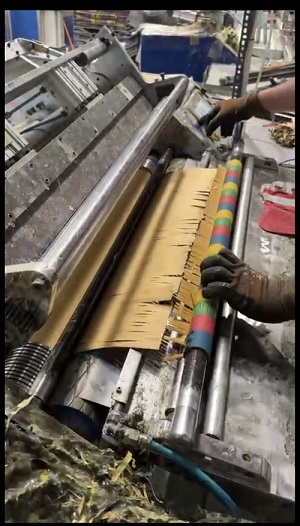

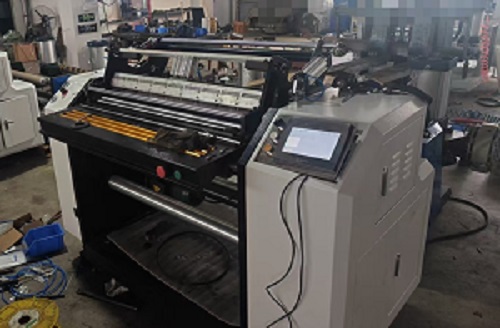

Our this paper serpetine streamers roll slitting rewinding machine with model HJG888 is

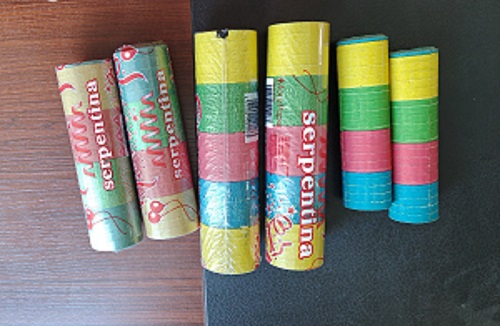

used to cut the paper serpetine streamer rolls.like the below photos.
the specifications for this paper serpetine streamer rolls slitting machine as below
Max. web width : 882 mm (7 packets of 18 streamers 7mm wide)
Mother roll max. diameter :1000 mm.
Min. slit width: 7 mm (others to agree).
Length of the serpentines: 4 to 12 mts serpentines
Coreless rewinding on shafts of diameter: 30 mm.
Max. operating speed: 180 MPM
Winding motor power 5 Kw.
Voltage :380 Volt 3 phase
UNWINDING GROUP
PNEUMATIC TYPE UNWINDING SHAFT WITH MAGANATIC POWDER BRAKE
Max. web width :880 mm Min. web width:650 mm.
Parent roll maximum diameter :1000 mm.
76 mm mechanically expanding chucks.
magnetic brakes provide the braking torque and are automatically adjusted by
means of a dancing roller tension system.
Dancing roller group to automatically control the web tension. Pneumatic pressure to
adjust
the system to the variation of the web
Slitting system has lower female and top rotary male shear knives and their corresponding
spacers.
Top male shear knife assemblies of 105mm diameter are included.
Lower female knives of 90 x 65 x 7 mm
mounted to obtain 7 packets of 18 streamers
Rewind shafts 30mm diameter.
