this HJG1100 thermal paper slitting rewinding machine is 1100mm width thermal paper slitting machine which specialized in producing the thermal paper rolls,cash register paper rolls,fax paper rolls etc
TEL: 0086-577-65123056
MOBILE/WHATAPP: 008613967712353
E-mail: cathylong7755@gmail.com
skype: cathylong7755
Details

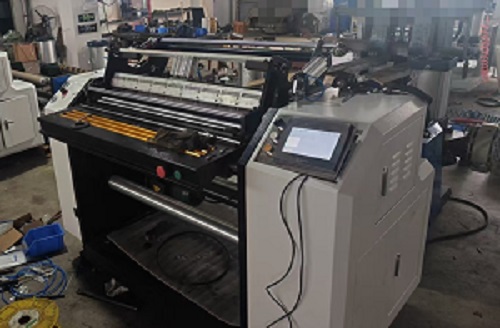

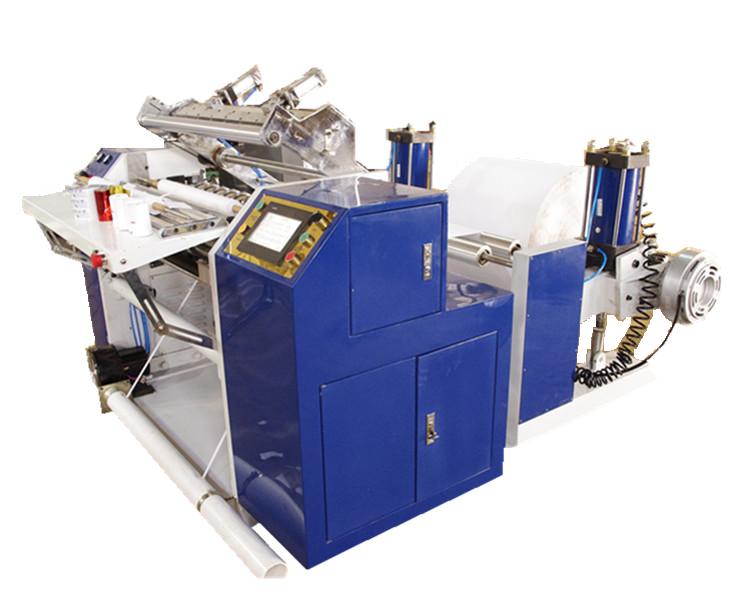

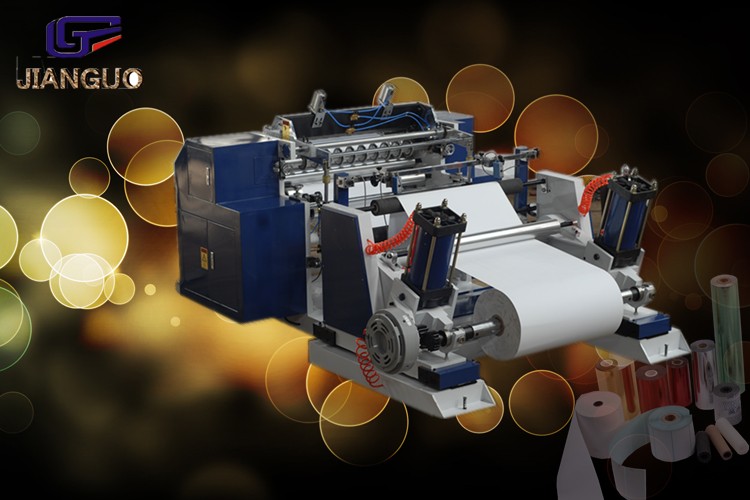

HJG1100 AUTOMATIC THERMAL PAPER SLITTING REWINDING MACHINE
Description

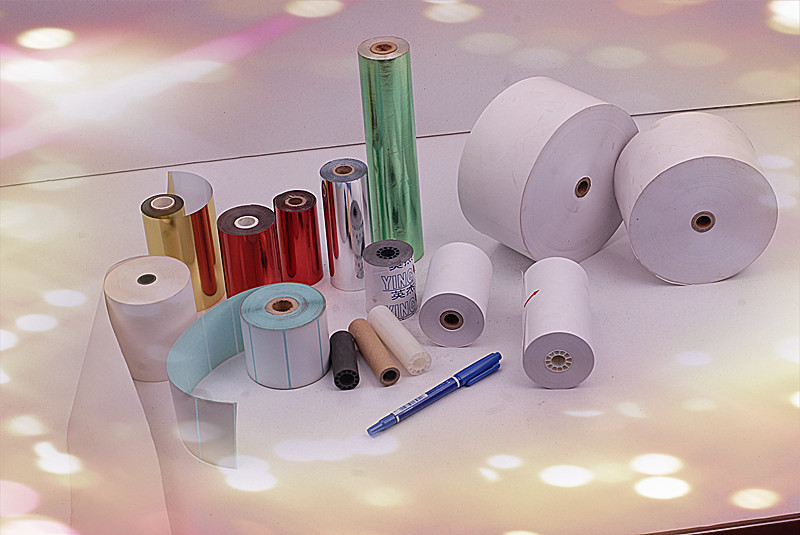

USAGE: it is mainly suitable for slitting all kinds of FAX PAPER, CASH REGISTER, COMPUTER BILL, MEDICAL RECORD PAPER,POS PRINTING PAPER,ATM REEL PAPER, film and self adhesive paper etc.
FUNCTION: it is adopt the surface rewinding way, automatic replicate, insert reel. The electric part adopt the most advanced PLC controller. All of the program are set by the touch screen(PLC). Unwinding is used to automatic loading system, the tension force is controlled by the Programmable Logic Controller. It is the most advanced numerical control cash register slitting equipment in China
Technical Parameters :
Material: 55-150g paper, thermal paper, cash register, ATM roll etc
The maximum width of the jumbo reel: 1100mm
The width of the small slitted reel by the machine: 56-1100mm
Working speed: 160m/min
Slitting speed: 5-168m/min
The maximum unwinding diameter: 1100mm
The unwinding shaft: locked 3inch air expanding shaft
Unwinding tension force 10N
The maximum rewinding diameter: 160mm
The main motor: 2.2 KW frequence inverter control
The fan motor: 0.55 kw single phase motor
The transimmission way: chain, gear and synchronization strap
Slit: round cutter(the size is according to the machine)
Standard slitting width: 35mm 57 65 75 80,,,,1100
Machine material: steel board and cast iron
Working voltage: three phase four line, 380V, 50HZ
Total power: 4.5 kw
Weight: about 1600 kgs
Overall dimension(LxWxH) 2.3Mx2.3Mx1.5M
Basic Equipment
Automatic paper insert system
Automatic tension force system
Automatic warning line printed
Length setting
Feeding system with cylinder
Panasonic PLC system Japan
Delta inverter :Taiwan
Omron electrical equipment Japan
7.5 inches touching screen
